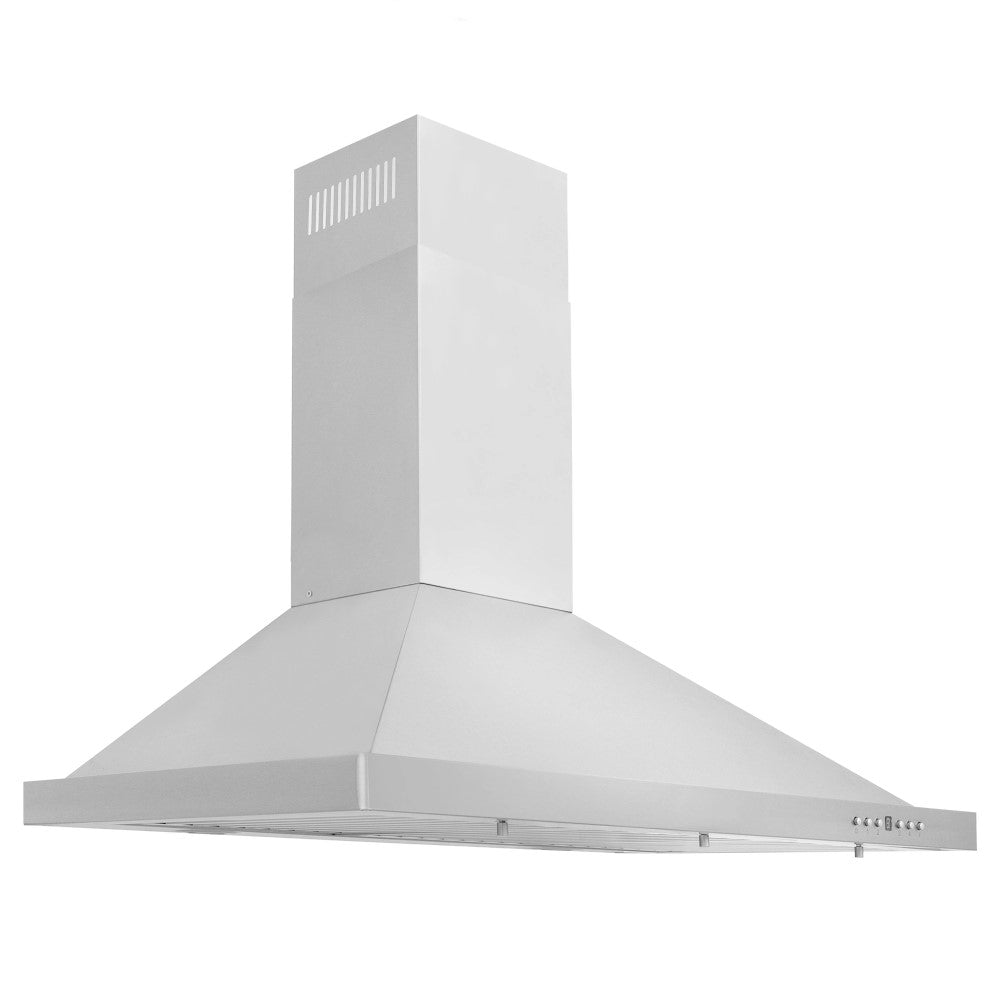

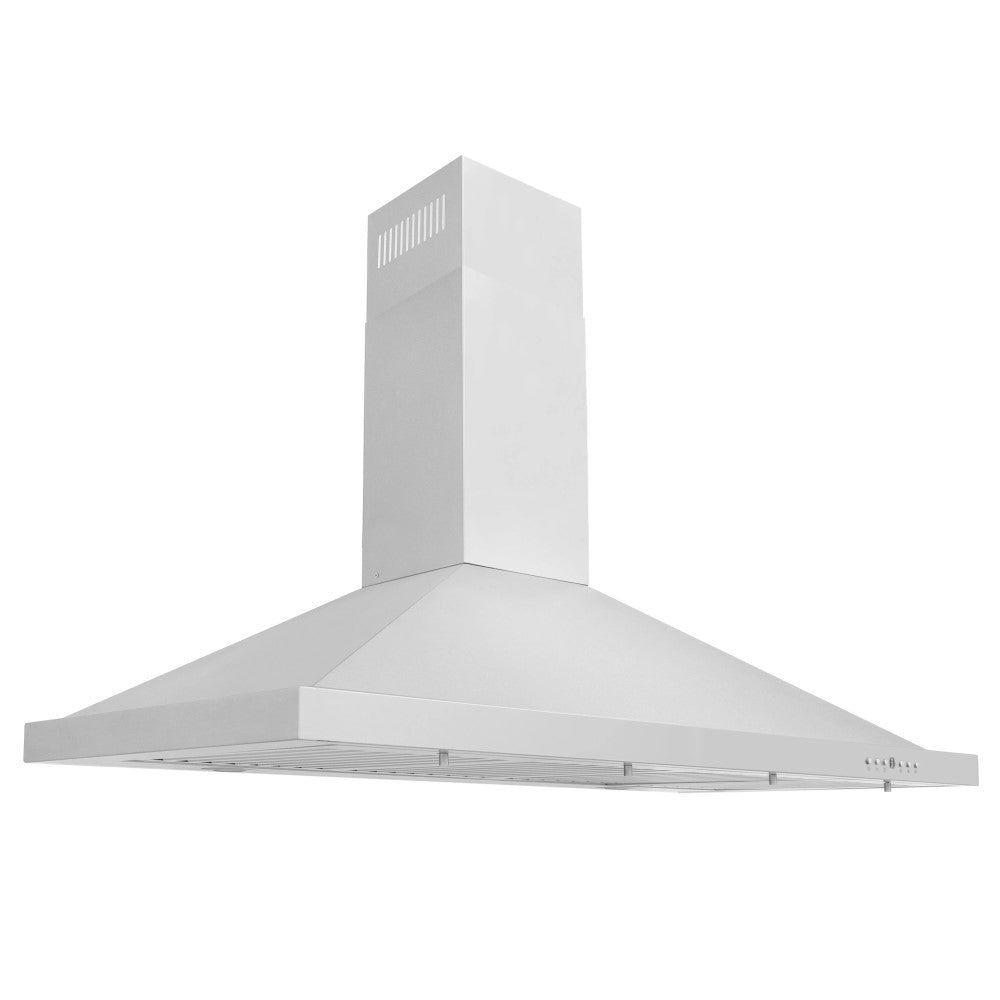

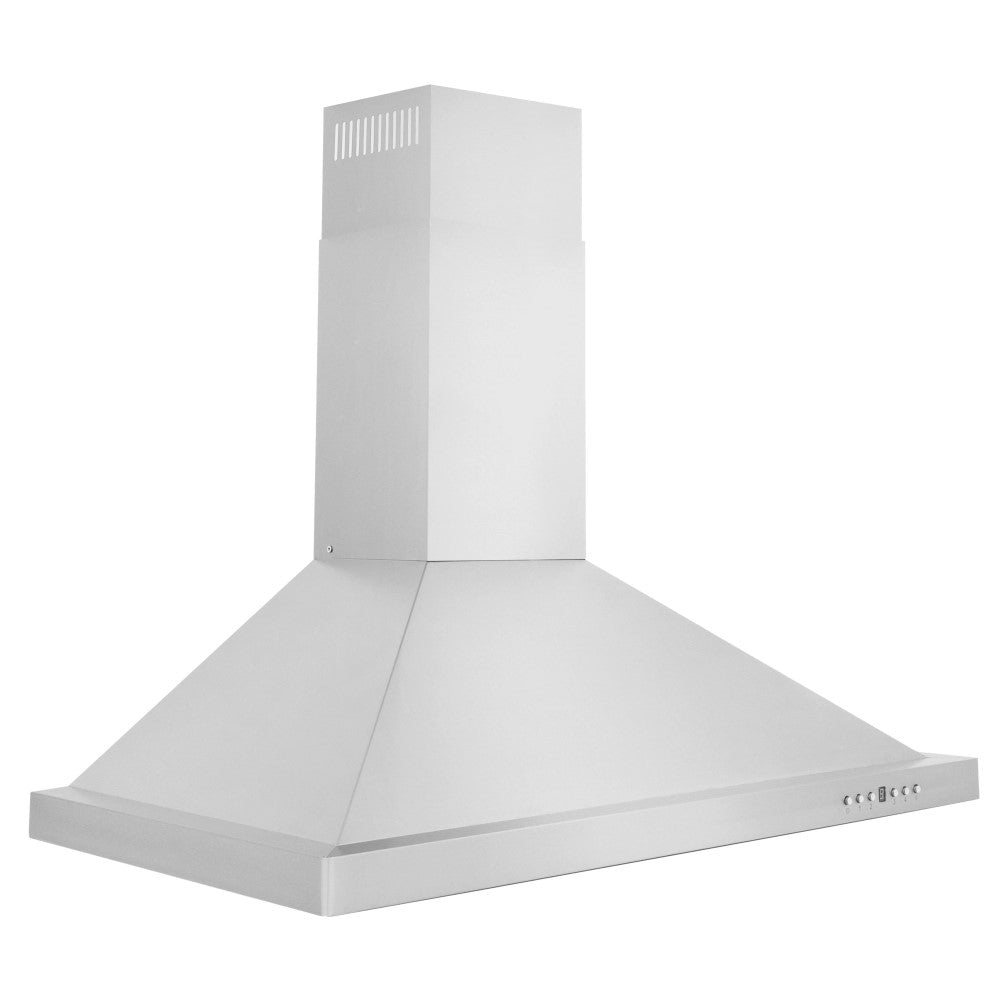

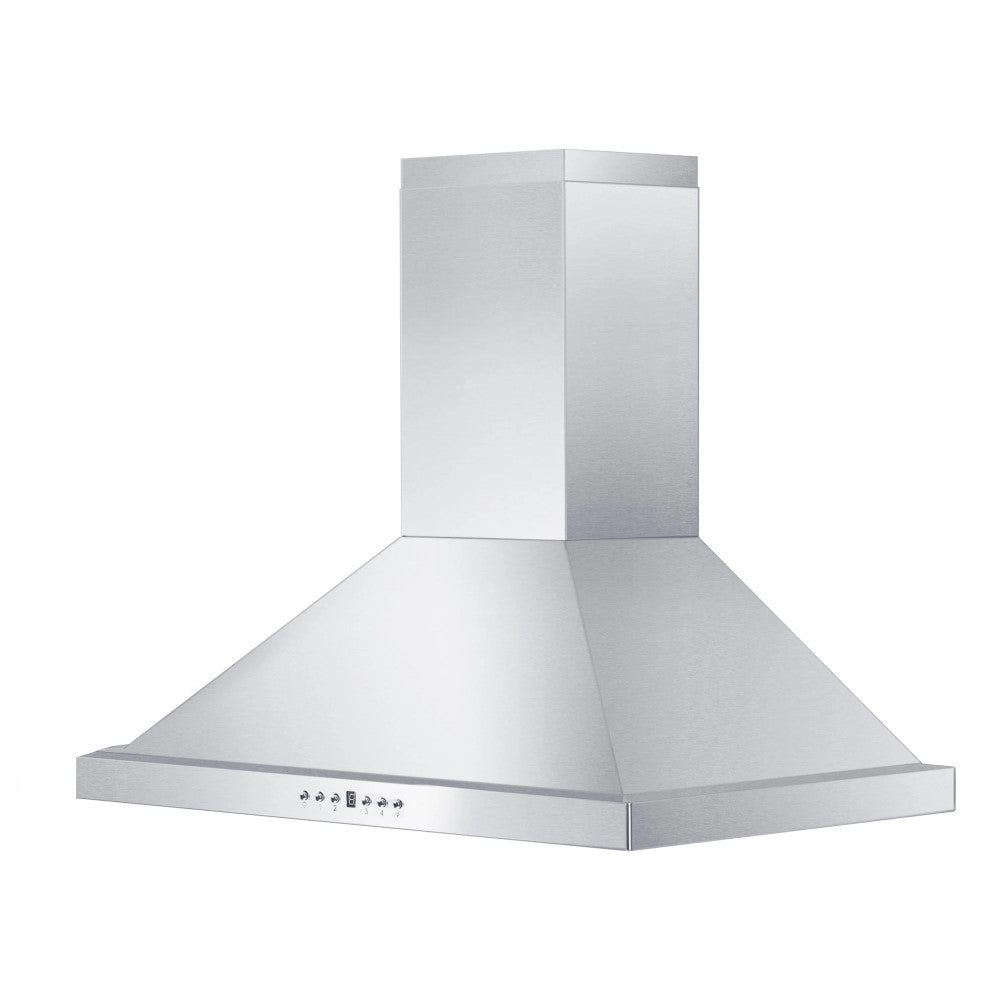

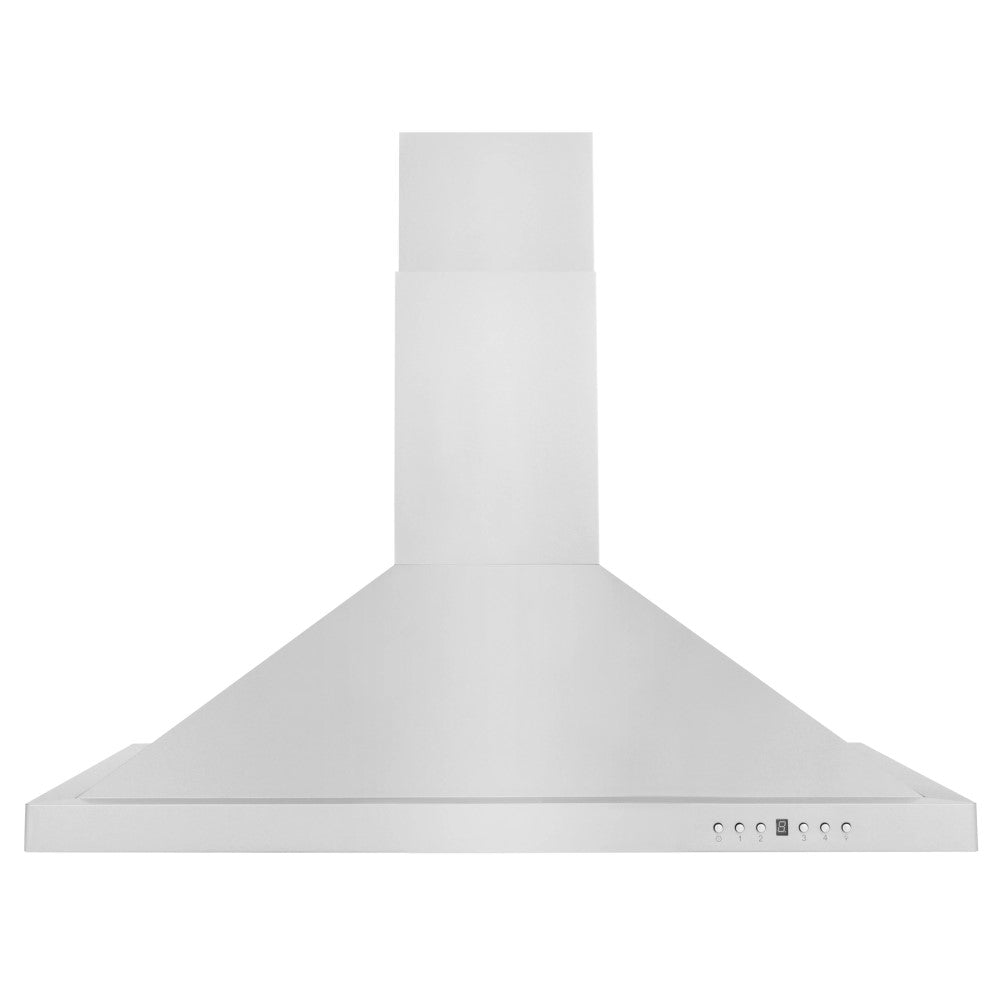

The ZLINE KB is a professional wall mount stainless steel range hood with a modern design and built-to-last quality, making it a great addition to any kitchen. This hood's high-performance, 400 CFM 4-speed motor will provide all the power you need to quietly and efficiently ventilate your stove while cooking. With its classic 430 grade stainless steel, this range hood contains rust, temperature, and corrosion-resistant properties to ensure a durable vent hood that will last for years to come.

Enjoy modern features, including built-in LED lighting for an illuminated culinary experience and dishwasher-safe stainless steel baffle filters for easy clean-up. This wall mount range hood has a convertible vent, so you can have a luxury range hood whether you need a ducted or ductless option. Enjoy easy installation and an easy recirculating conversion process.

Experience Attainable Luxury® in the heart of your home, with a ZLINE range hood. ZLINE Kitchen and Bath stand by all products with its manufacturer parts warranty.

This hood contains many unique features, such as:

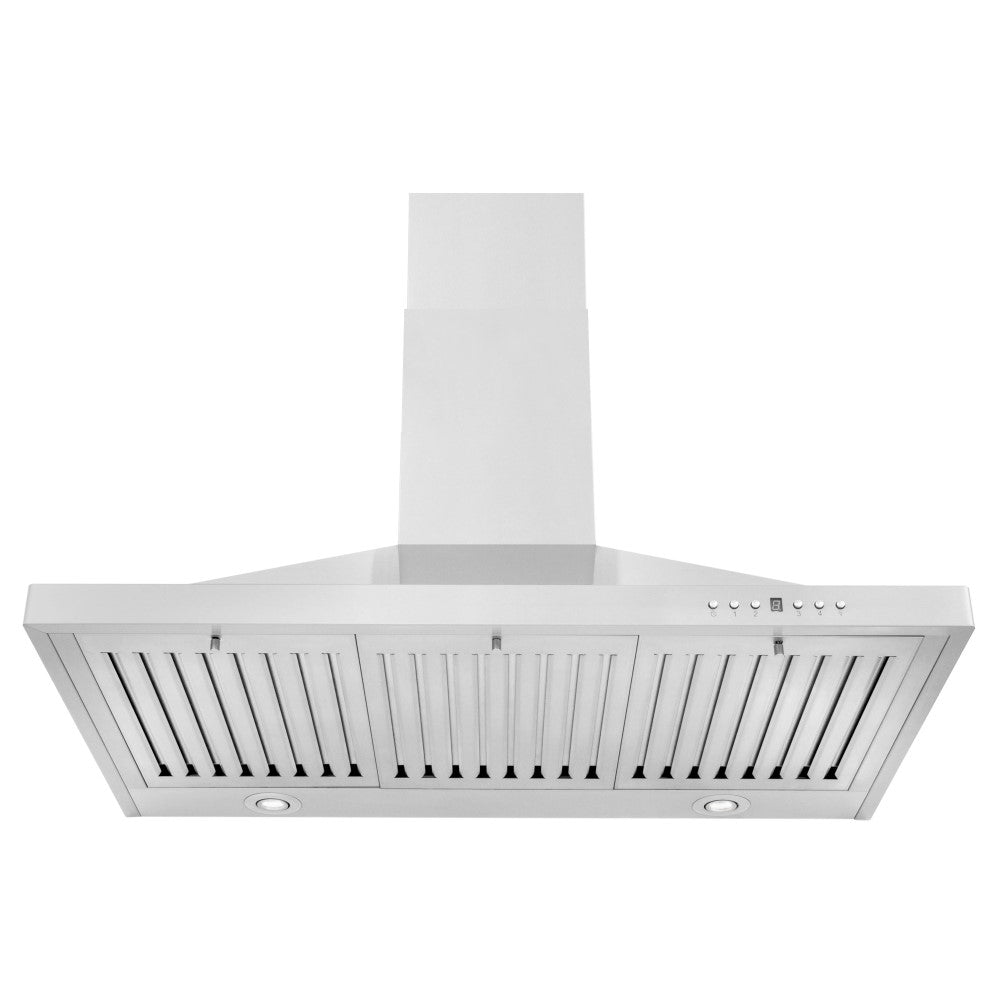

• Dishwasher-safe stainless steel baffle filters

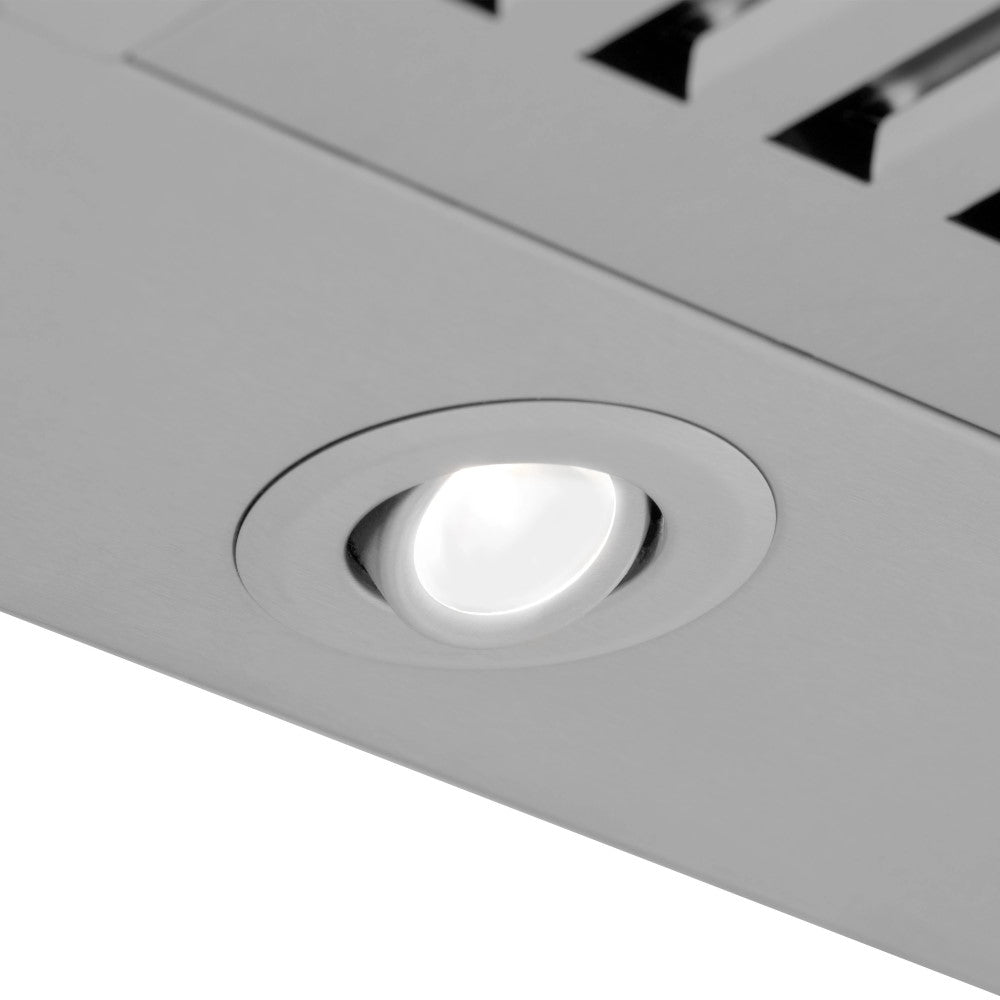

• Built-in LED lighting
• High-performance 4-speed motor
• Includes chimney

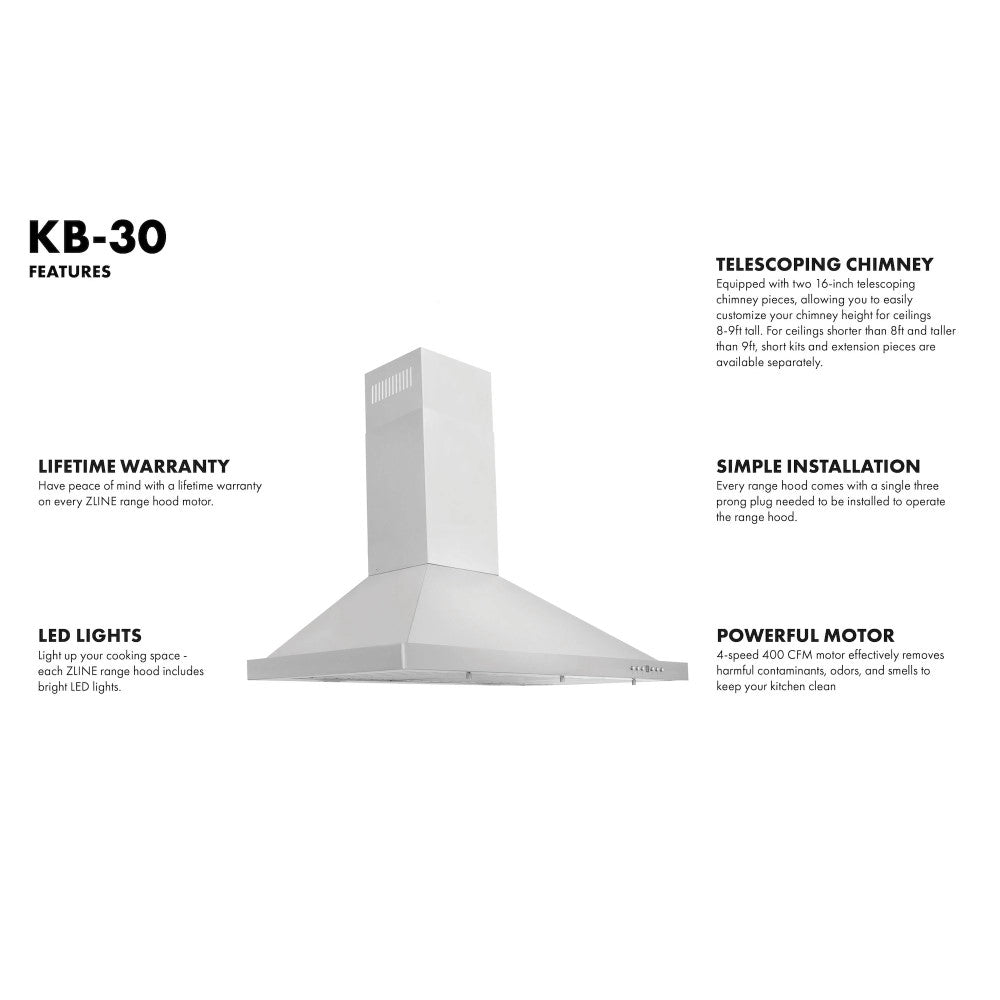

All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimney pieces, allowing a fit for most ceilings between 8 and 9 feet. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size.

ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods.

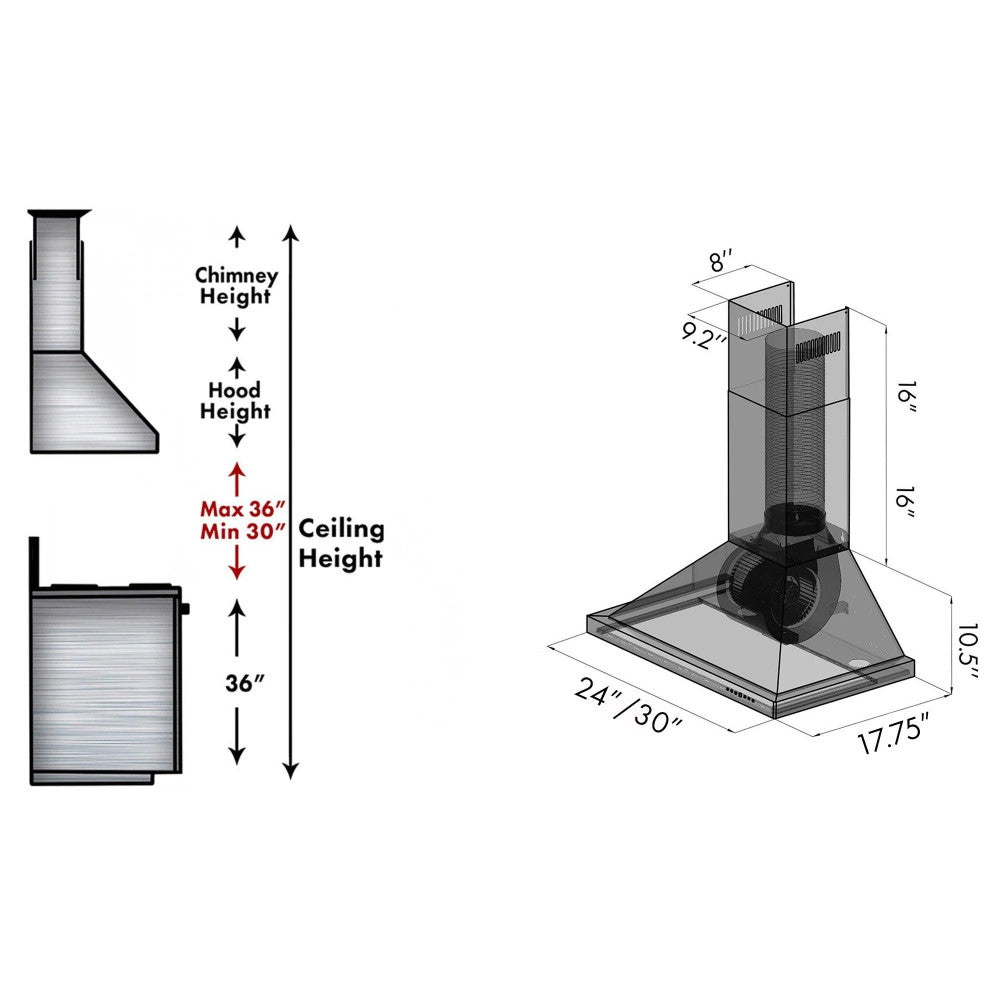

Chimney Sizing

ZLINE Range Hoods are designed to fit the majority of kitchens right out of the box. Some kitchens with shorter ceilings do need a shortening kit or an extension kit depending on ceiling height. All our stainless steel hoods come with two telescoping chimneys to ensure the perfect fit. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size.

Chimney Calculator

PRODUCT DETAILS

Product Specifications

Dimensions

• KB-24 Dimension: 24" W x 17.75" D x 10.5" H (Actual width 23.75")
• KB-30 Dimension: 30" W x 17.7" D x 10.5" H
• KB-36 Dimension: 36" W x 19.7" D x 10.5" H
• KB-42 Dimension: 42" W x 19.7" D x 10.5" H
• KB-48 Dimension: 48" W x 19.7" D x 10.5" H

Venting Size:

• 6" Outlet (Transition piece with backdraft damper to round ducting included).
• Charcoal filters (not included) available for ductless/ recirculating options.

Airflow (Q/L/M/H): 120/240/320/400
Lighting: LED Lights
Noise Level: 20/29/34/41 (Decibels)
Voltage: 110V/60HZ
Motor: High Performance 400 CFM/4-Speed Motor
Mount Type: Wall Mounted
Speeds: 4 Speeds

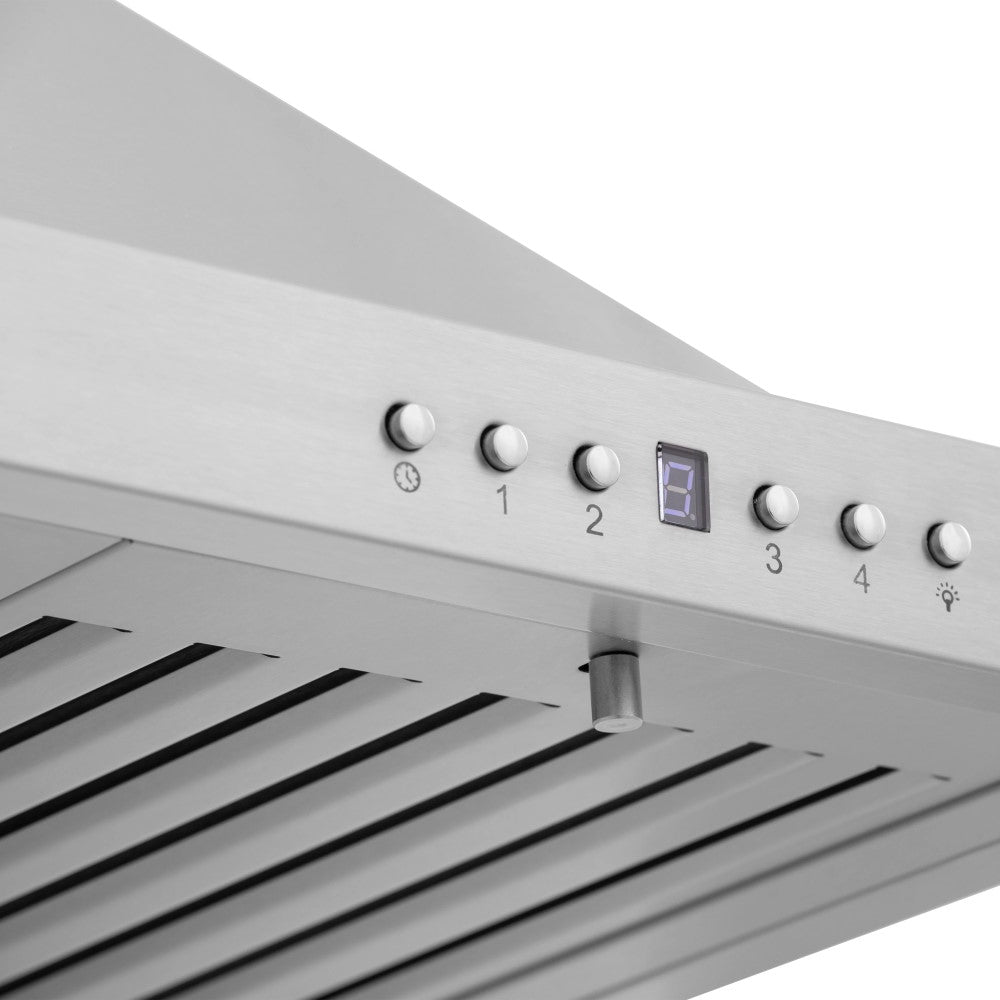

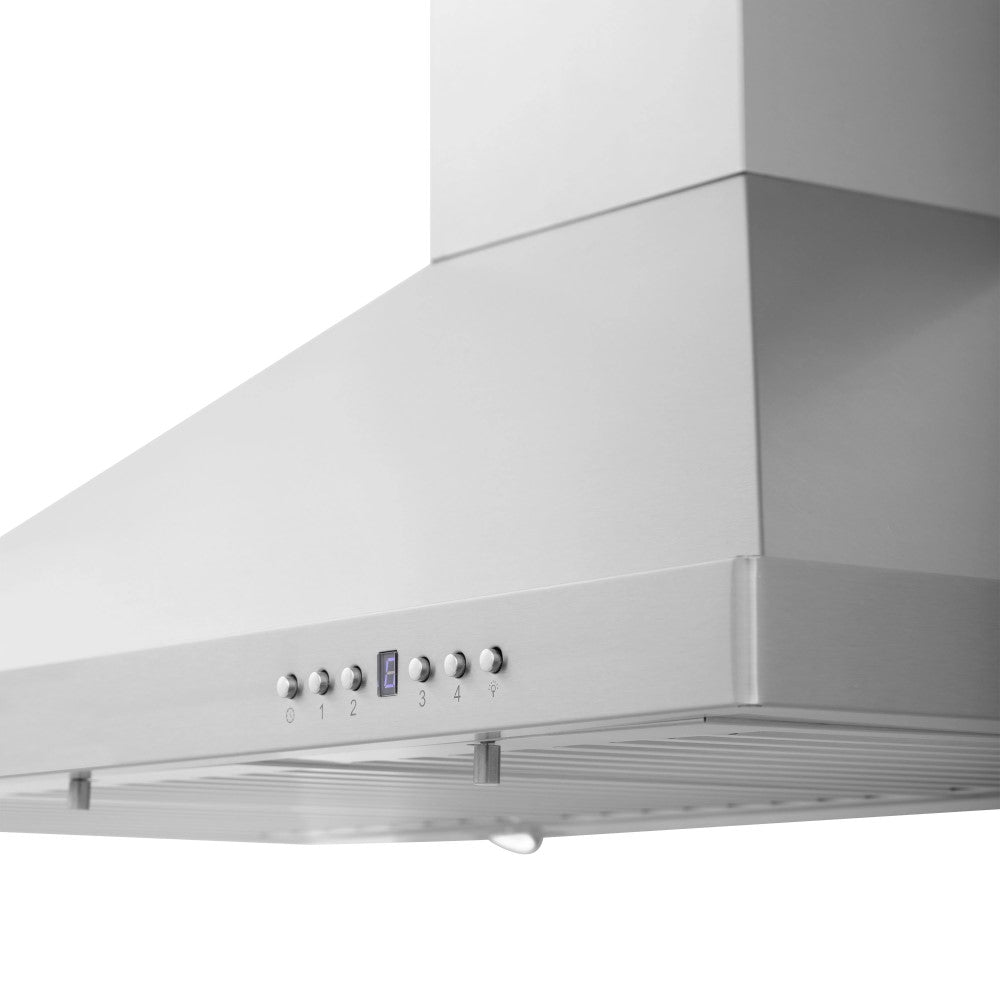

Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
Material: 21g #430 Stainless Steel
Warranty: 3 Year Parts Warranty
Certifications: ETL Listed
Installation and User Manual

• Range Hood Manual
