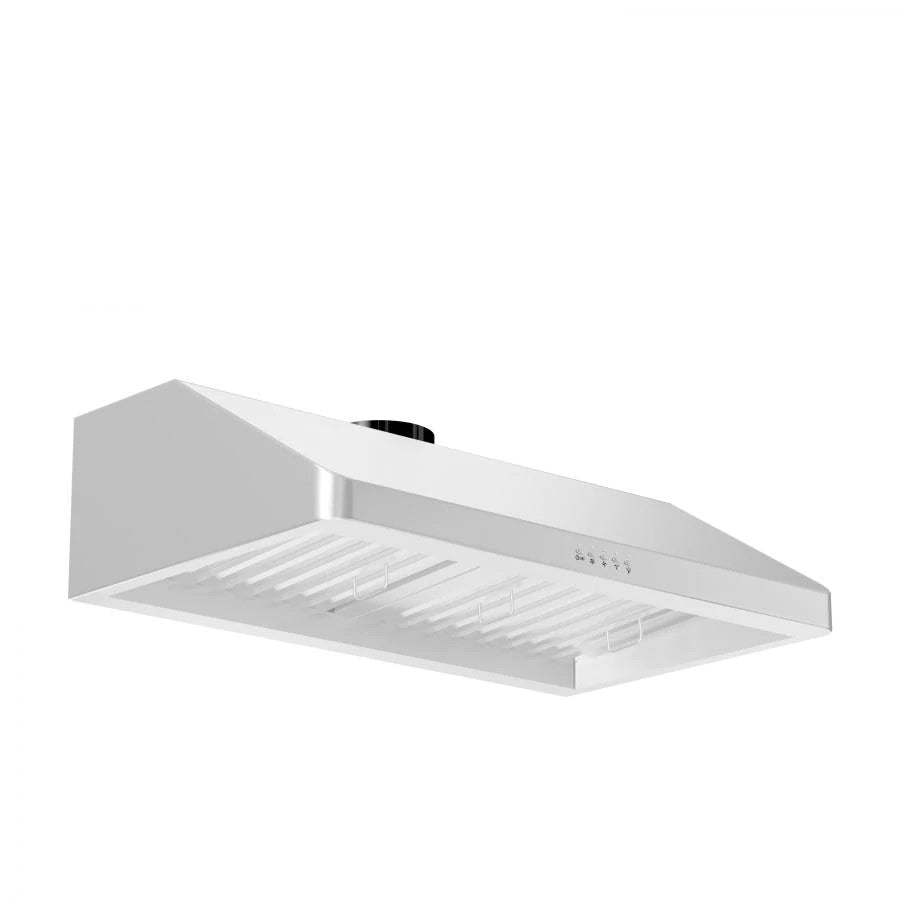

The ZLINE 623 is a professional under cabinet stainless steel hood designed to be both elegant and powerful, featuring the industry's only lifetime warranty motor. This hood is made from 430-grade stainless steel and is a ZLINE classic. Its durable construction, modern design, and lifetime warranty motor - a ZLINE exclusive - guarantee a range hood with a timeless design that will last a lifetime.

This hood contains many unique features, such as:

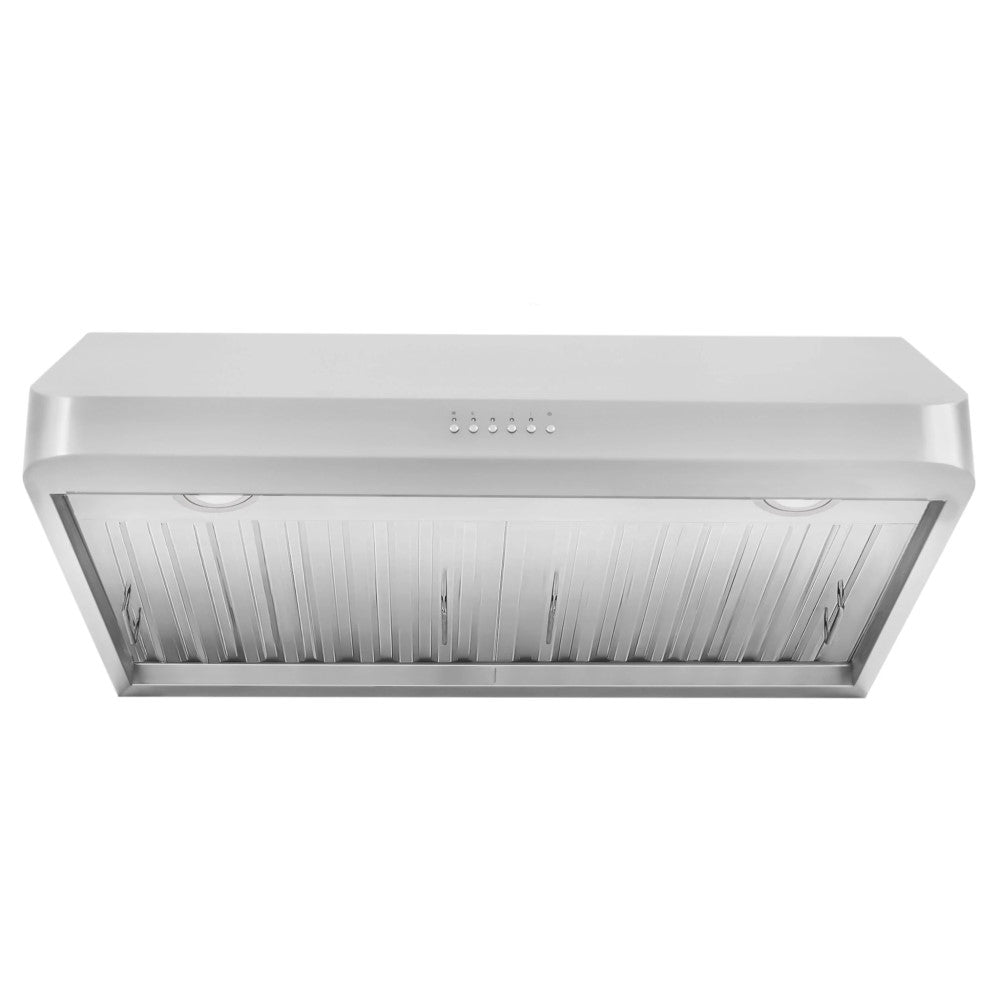

• Dishwasher-safe stainless steel baffle filters

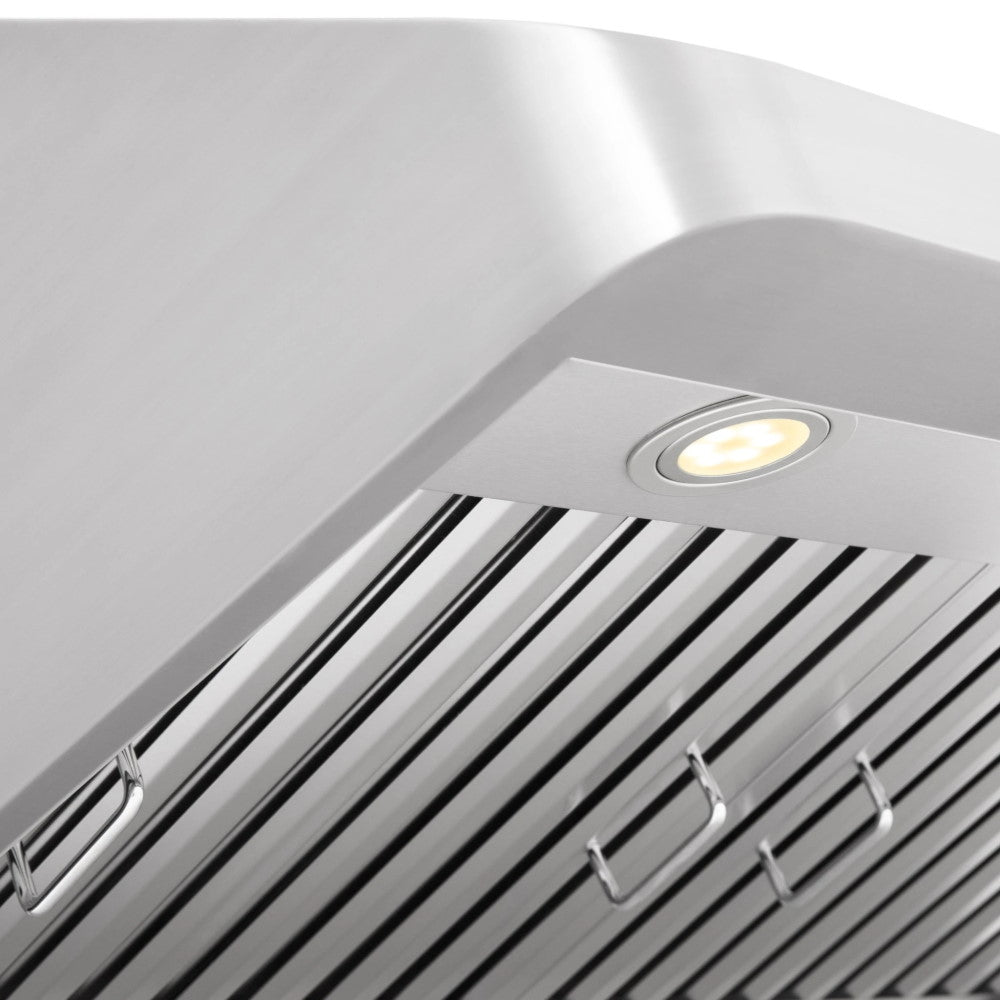

• Built-in LED lighting
• High-performance 4-speed motor
• Includes chimney

Chimney Sizing

ZLINE Range Hoods are designed to fit the majority of kitchens right out of the box. Some kitchens with shorter ceilings do need a shortening kit or an extension kit depending on ceiling height. All our stainless steel hoods come with two telescoping chimneys to ensure the perfect fit. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size.

PRODUCT DETAILS

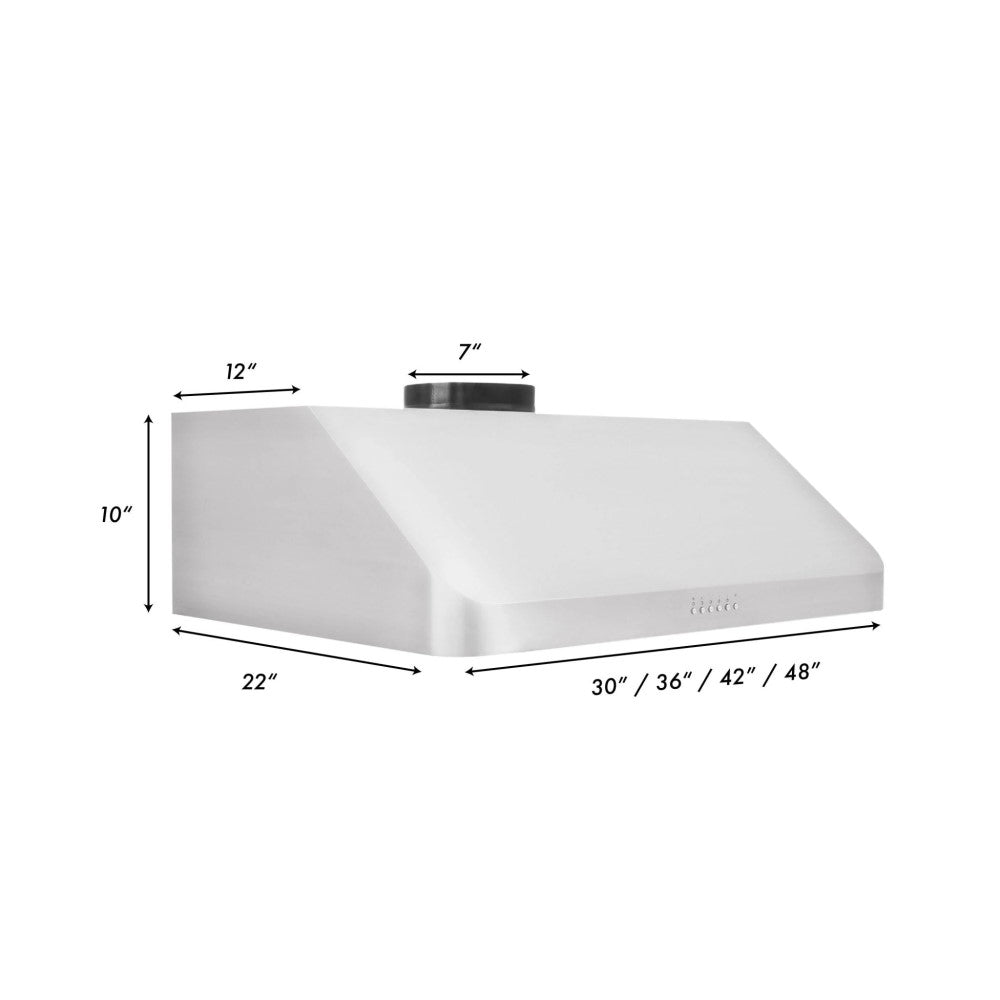

Dimensions:

• 623-30: 30 in. W x 22 in. D x 10 in. H
• 623-36: 36 in. W x 22 in. D x 10 in. H
• 623-42: 42 in. W x 22 in. D x 10 in. H
• 623-48: 48 in. W x 22 in. D x 10 in. H

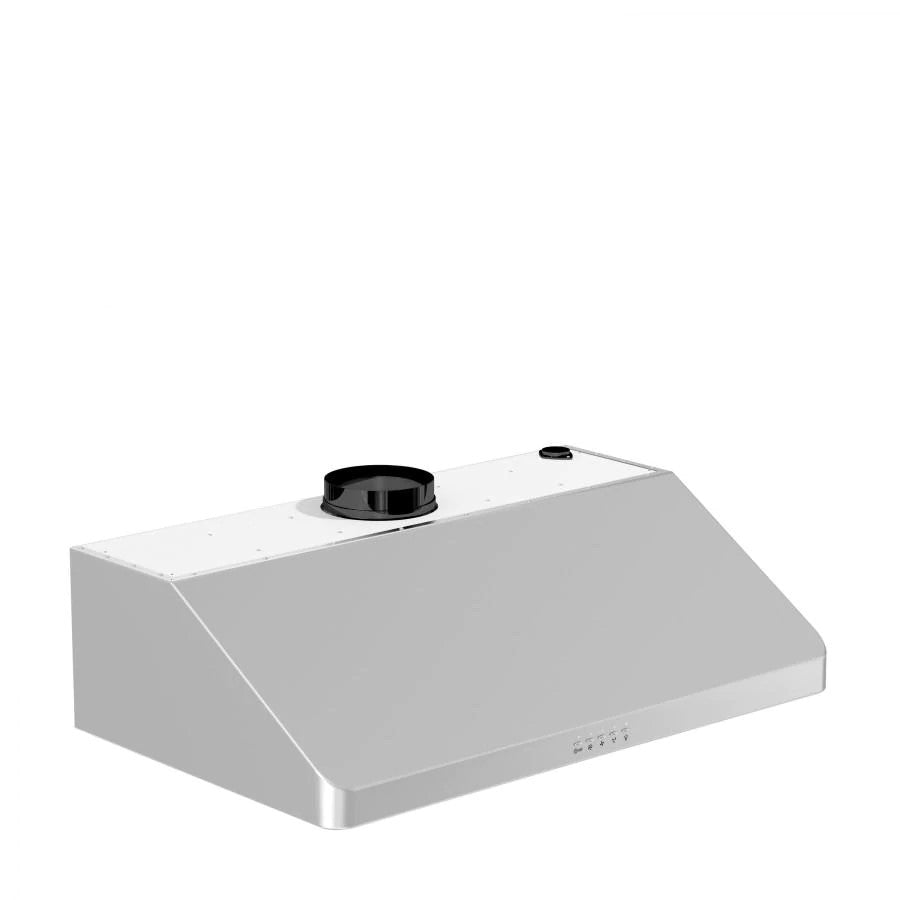

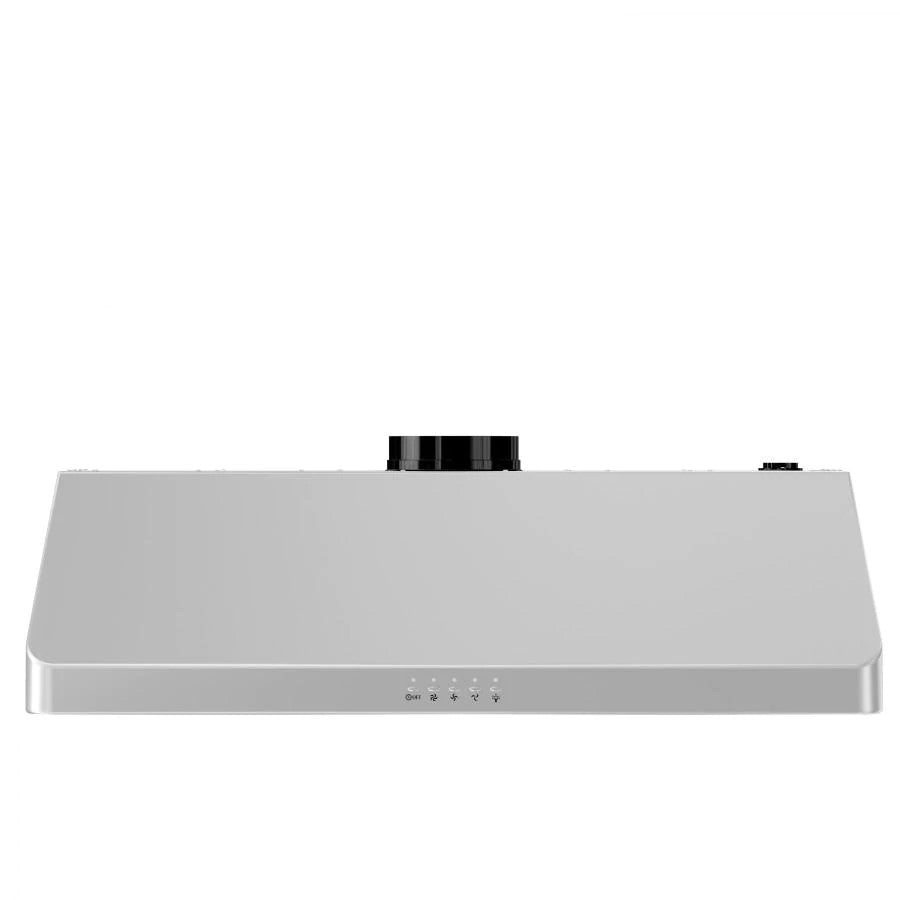

Venting Size: 7" Round Outlet
Lighting: 2 Energy Efficient LED Lights
Airflow (Q/L/M/H): 270/380/490/600
Motor: High Performance 600 CFM/4-Speed Motor
Noise Level: 30/41/49/52 (Decibels)
Voltage: 110V/60HZ

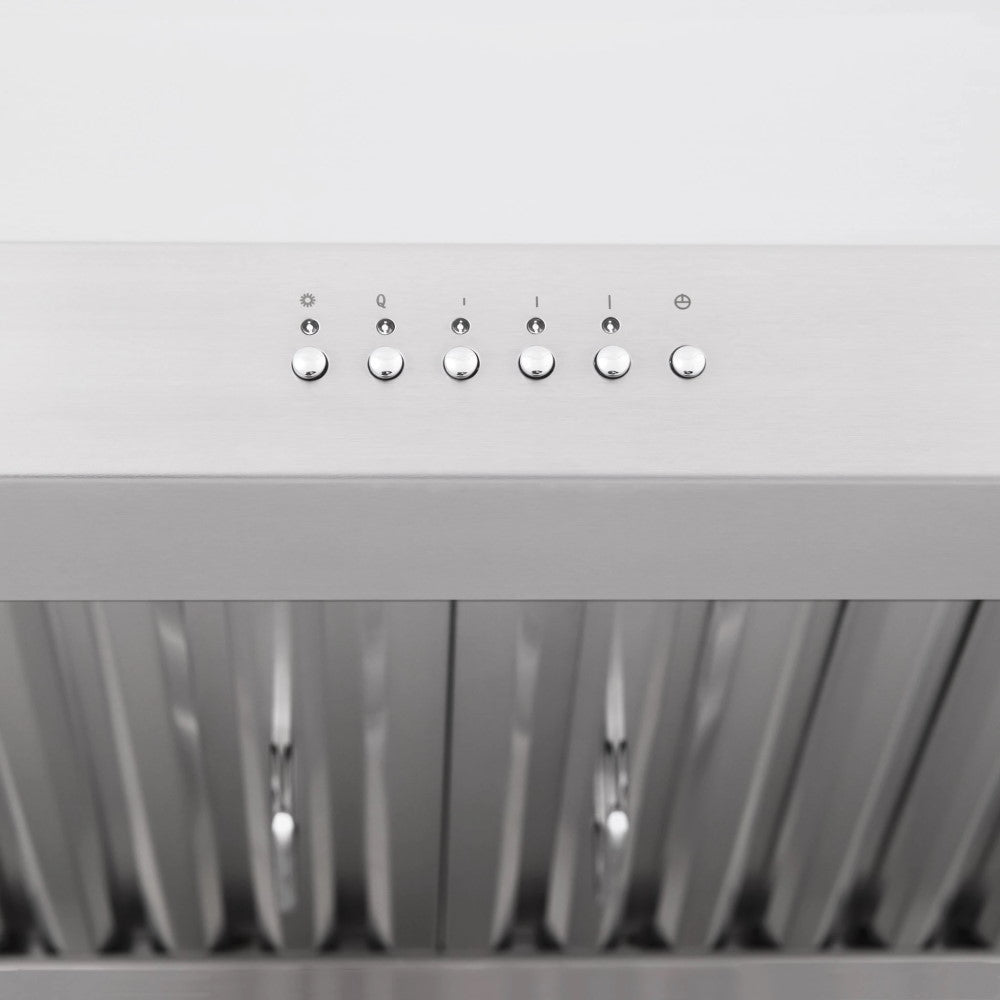

Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)
Material: Stainless Steel

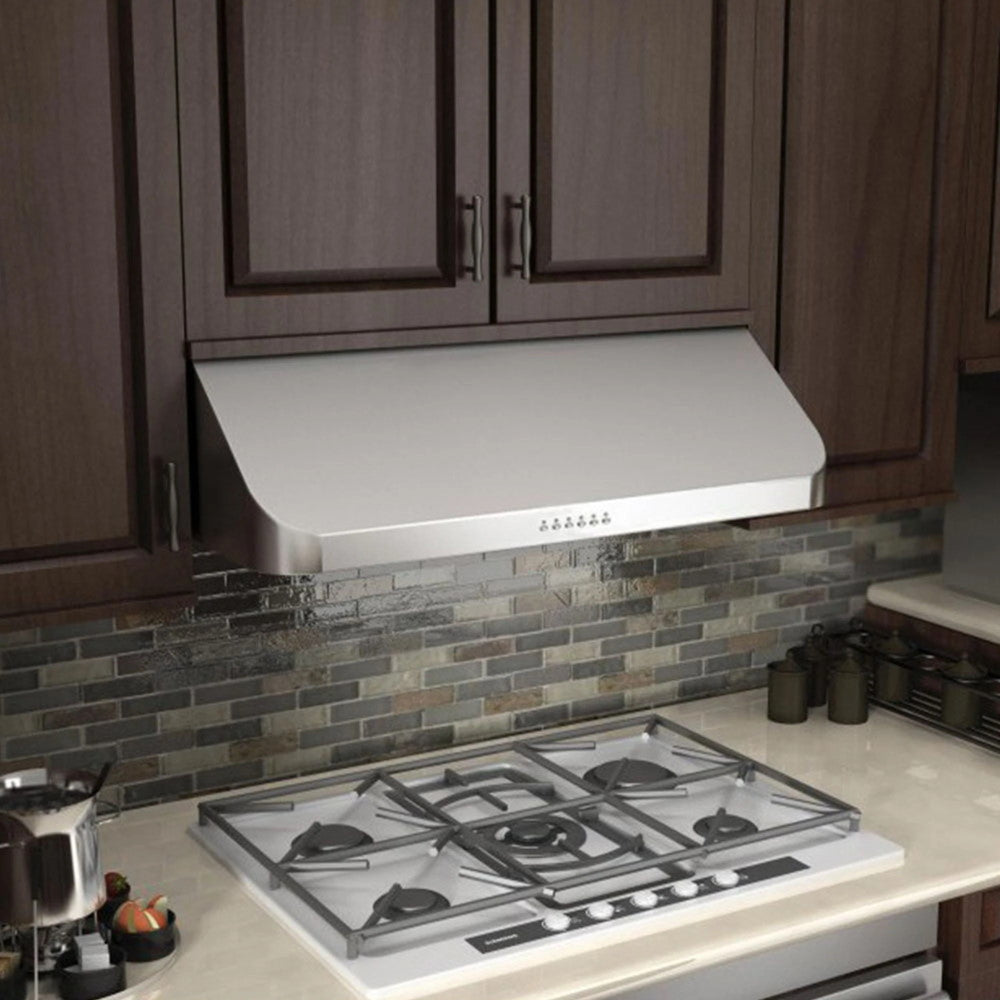

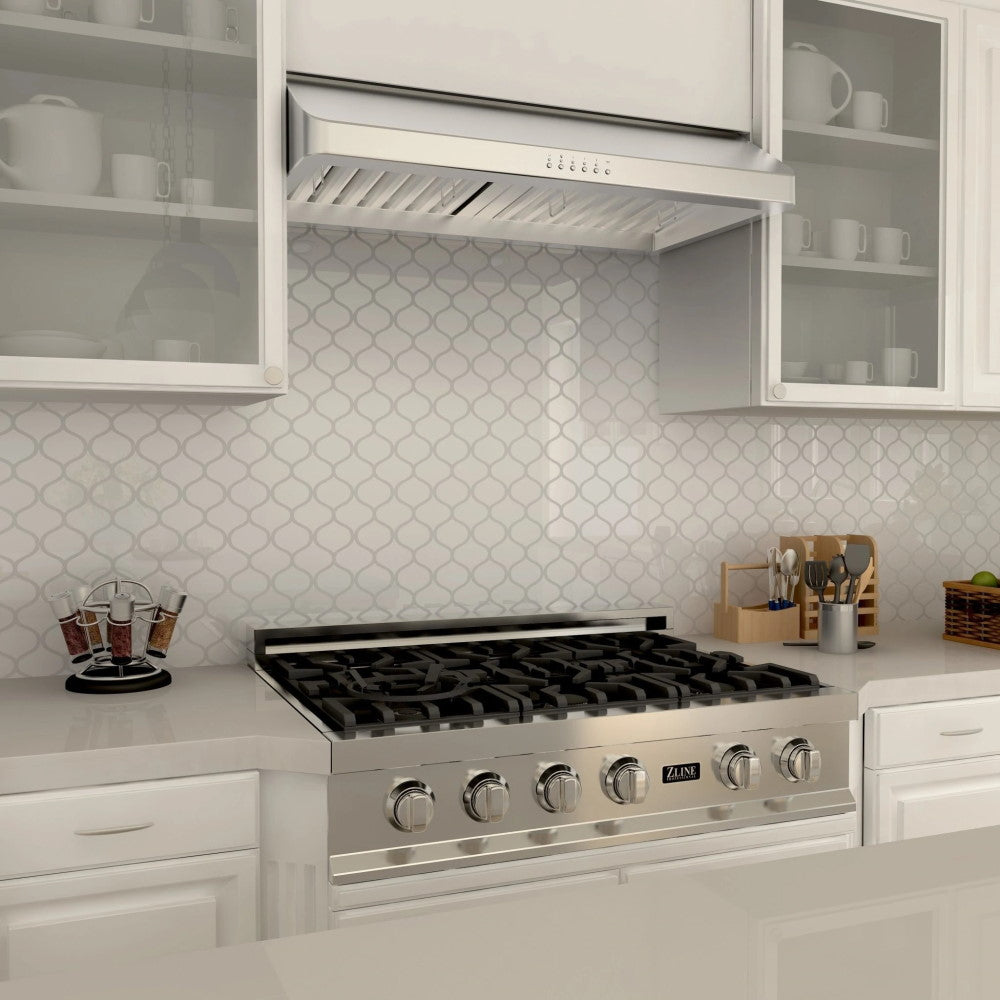

Mount Type: Under Cabinet Mounted

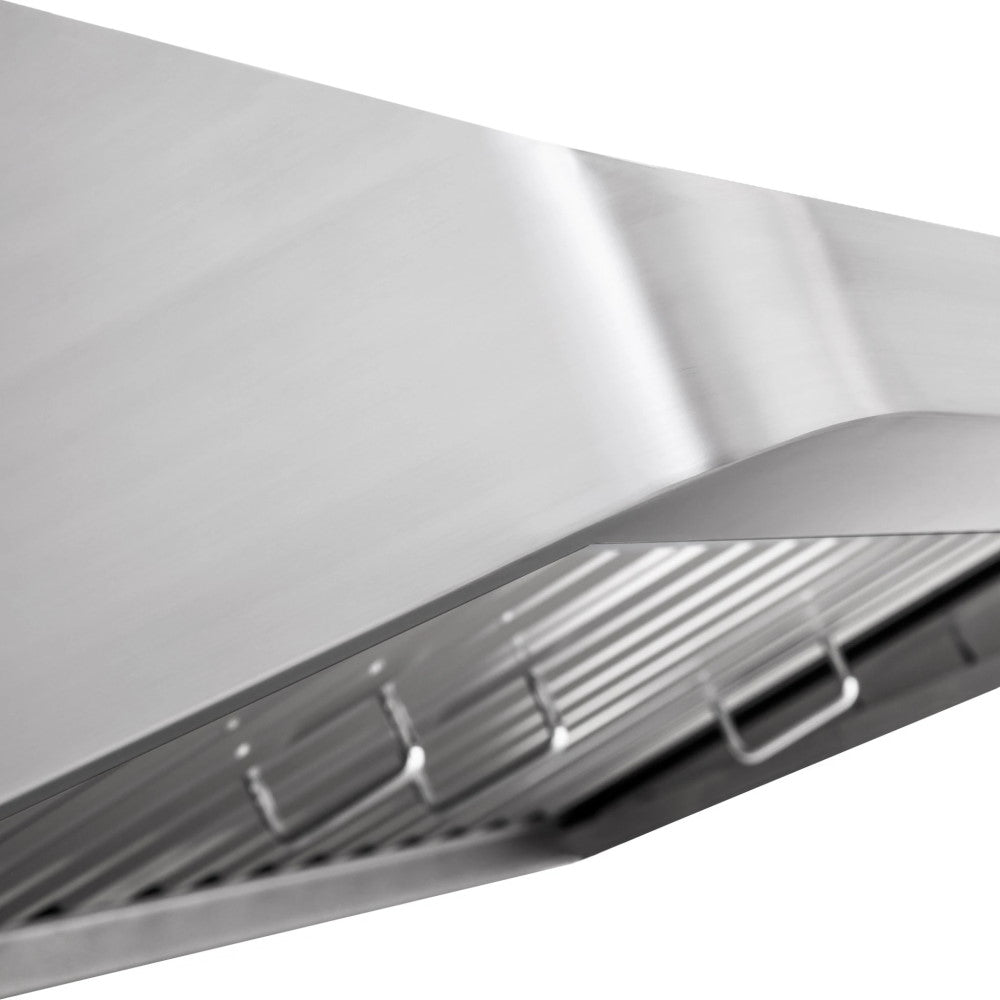

Filters: Stainless Steel Baffle Filters (Dishwasher Safe)
Warranty: 3 Year Parts Warranty
Certifications: ETL Listed
Installation and User Manual

• Under Cabinet Range Hood Manual
